DECO Fixture
Manufacturer:
ElmarCo
Height:
45cm
Width:
50cm
Depth:
50cm
Source of light:
29W, 39W, 40W, 60W
Stream:
3300, 3600, 4800, 7200 lm
Metal color:
white, grey, graphite, black, RAL
IK class:
IK08
IP class:
IP65
Shade material:
PMMA
Fixture material:
aluminium
Source type:
LED integrated
Weight:
6kg, 5,5kg

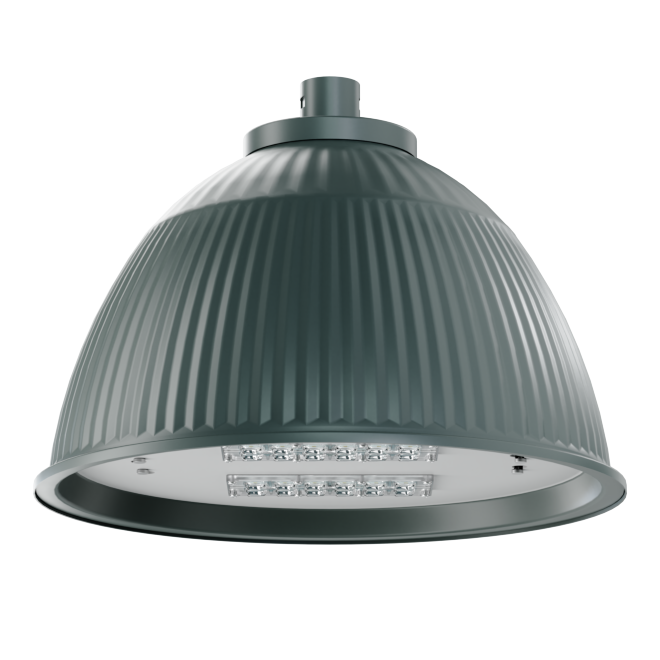

Classic arm mount luminaire, ř60 mm at a height of 5-8 m. The aluminium body is a sealed chamber, enclosed by a plate on which a sealed LED module with lenses of selected optics is mounted on the glass side, and a heat sink and power supply on the inside. The chamber is connected to a top rosette, which, in addition to its decorative function, serves as a mounting bracket. Transparent or frosted glass glazing.
Purpose: illumination of spaces with historical character, as well as local roads, car parks, squares.
Deco_FOT
Photometrics
Deco 2 x17_(K)
Data sheet and specifications
Deco 24_(K)
Data sheet and specifications
Deco 3 x 17_(K)
Data sheet and specifications
Deco 32_(K)
Data sheet and specifications
Deco_DZ
Declaration of conformity of the products
Deco_1270532_ELM 12_EPREL
Eprel
Deco_1273110_ELM 4_EPREL
Eprel
Deco_1314111_ELM 4 Plus_EPREL
Eprel
